F I N E   H Y D R O C A L   C A S T I N G S   B Y   C.   C.   C R O W
  P.   O.   B O X   1 4 2 7         M U K I L T E O,     W A     9 8 2 7 5     U S A



HO SCALE
KIT No. SAB
PRICE $50.00
WT. 2 lb.
DATE 1984

STATUS: NA
  SEE PRICE LIST



The
40 ft. Stone Arch Bridge

is
modular and designed to construct over a typical framework.


There are a number of options and matching additions.



KIT No. SAB
GENERIC
CRAFTSMAN


  E-ORDER


SHOPPING CART
  BUY ME
  SEE CART
  SEE PRICE LIST

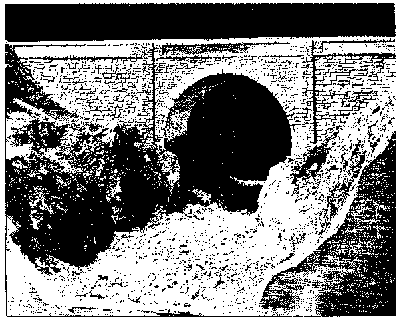

The 40 ft. Stone Arch Bridge. Black and white photo showing a single arch spanning a gorge.

40 ft. STONE ARCH BRIDGE

The 40 ft. Stone Arch Bridge was inspired by John Allen's original viaduct combining stone with ornate brick railings on his original section of the famed G&D layout.

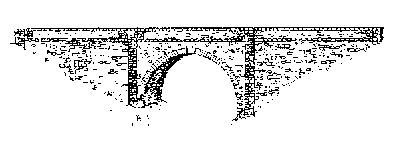

The 40 ft. Stone Arch Bridge. Line drawing showing a single arch spanning a gorge.

This classic stone arch bridge could be quietly tucked away in a corner of your layout or it could be dramatically displayed as the highlight or your railroad.

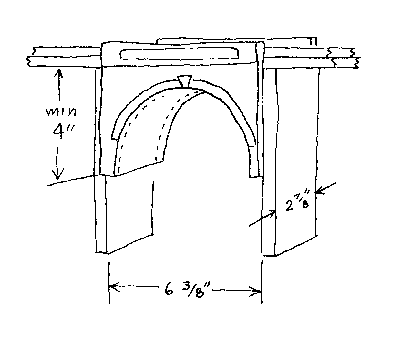

The 40 ft. Stone Arch Bridge. Detail drawing of construction over benchwork.

The bridge is designed to fit under a typical wood framework of 2-7/8" wide- 1/2" plywood and 1/2" Homasote roadbed. Because of its modular design you can expand your bridge into a grand multi-span viaduct with as many additional spans as you like. You can also heighten it with taller piers and abutments.

Minimal two-track NMRA clearance underneath arch if base of bridge is railhead height, on 2 inch centers.

Kits include a pair of finely detailed arch faces, barrels, did I mention that they too are stone textured, pilasters and winged abutments all cast in white Hydrocal. Comes with complete coloring and assembly instructions.

Matches my Hand-carved Stone, coarse (HCS-c) stock casting.


SAB - 40 ft. Stone Arch Bridge $50.00   BUY ME
SAB-add - Additional Span, each $33.00   BUY ME
HCS-C - Matching Hand Carved Stone $12.95   BUY ME


SORRY- this kit is resting for a while.
  E-ORDER     or BUY ME and I'll let you know when it's available.



C. C. CROW   P. O. BOX 1427   MUKILTEO, WA 98275



The 40 ft. Stone Arch Bridge. I built this tall four span viaduct for display.

I built this tall multi-span viaduct for display. It would look great on a layout!
Reminds me of Pennsylvania, just need to add some trees.
